Introduction to PVC surface layer
Internationally recognized PVC courts are made of 100% brand new
material, free from DOP, heavy metals, and zero methanol;
Conforming to EU testing standards, adsorption factors were added
during the production process, resulting in TVOC emissions less
than 100 μ G/m ³, No harm to the human body; Easy maintenance in
the future;

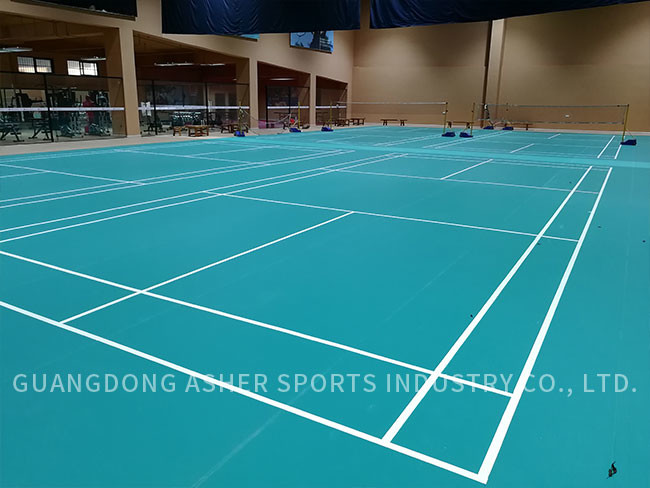

It is suitable for indoor Basketball court, tennis court,
volleyball court, badminton court and other professional
competition venues.
Product features
(1) Good weather resistance, water resistance, with high density,
good stability, good wear resistance and professional Antiskid property;
(2) super stability, the floor does not shrink deformation;
(3) Anti-bacterial and antibacterial treatment to inhibit the
growth of mold;
(4) Good resilience and better protection of athletes' ankle and
knee joints;
(5) Suitable for concrete and asphalt foundation.
Requirements for the ground of the competition venue
1. The ground of the site must be flat, level, and free from
sinking cracks.
2. The ground of the venue must not have any potential hazards that
could harm team members.
3. Do not compete on rough, wet, or slippery surfaces.
4. The ground of the FIBA World Championship venue can only be made
of wood or synthetic materials.
5. If it is an indoor venue, the net height of tennis and
volleyball should not be less than 12 meters.
Installation method of PVC floor adhesive:
(1) First, polish and clean the ground base to remove dust.
(2) Apply the adhesive evenly on the base layer surface with a
toothed scraper, and lay the boards in sequence from the inside to
the outside. After laying a construction surface, use a roller or
push plate to compress and compact it.
(3) After the board is laid, determine the dryness of the cleaning
agent based on the temperature, and then proceed with welding of
the board joints.
(4) Use a V-shaped trenching machine to start digging to 2/3 of the
floor thickness from the center of the connecting line. Cut off the
welding rod based on the length of the joint. Connect the power
supply and preheat the welding machine to 200-220 ℃. After
preheating, insert the welding rod into the welding machine and
weld the 3mm welding rod at a pressure of 2kg/cm2 starting from the
top of the joint.
(5) After the welding rod cools down, use a shovel to cut the
excess welding rod above the board surface flat. During operation,
be careful not to damage the floor surface.
(6) After the adhesive is fully bonded, the first maintenance
should be carried out immediately. After completion, thoroughly
clean or use a vacuum cleaner to remove all residue from the
ground. Do not use the site within 24 hours after completion.
1.good color fastness
2.High elasticity and wear resistance
3.Acid & Alkali Resistance
4.Aging resistance
5.UV resistant properties
6.Low density for excellent coverage
7.Excellent features for wet poured safety playgrounds for Swimming
Pool
8.Maximum abrasion resistance and permanent elasticity
9.High degree of adjustable area elasticity and point elasticity
10.Spike resistance even under constant load
11.Long life,permanent bond with case
12. Environmental-friendly, non-toxin, non-pollution and
recyclable.
13. Outdoor and Indoor are available.
14. Good performance for aging, electrical insulation,corrosion and
impact-resistant.
15. Convenient to install and easy to maintain
Q:What is the Production time?
A:It is about 7-15days.
Q:What are the options for the base construction of a sport court.?
A:The ground is based on asphalt or concrete.
Q:What is the life Span for Sport Court Flooring?
A:The life span is about 10-15years.
Q : What is the MOQ of the flooring Materials?
A : The MOQ is 1sqm, we have in stock.
Q : Can the flooring materials be used indoor or outdoor?
A : Yes, it can be used indoor and outdoor.
